Since its inception in 2009, Raydafon Mechanical & Electrical Co., Ltd. has embarked on a transformative journey to redefine excellence in the light industry, with a steadfast vision to become a global leader in transmission technology and a timeless institution for generations to come. Officially registered in August 2018 in the vibrant East New District of Wenling, Zhejiang Province, with a robust registered capital of RMB 3 million, Raydafon has rapidly emerged as a beacon of innovation and reliability.
Why Choose Raydafon?
At Raydafon, we don’t just build products—we engineer solutions that drive progress. With a relentless focus on quality, innovation, and customer satisfaction, we’re not just keeping pace with the future; we’re shaping it. Join us as we continue to redefine the boundaries of what’s possible in transmission technology.

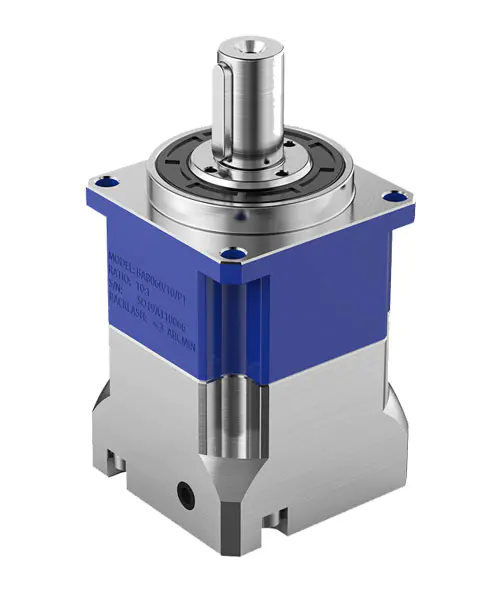

Welcome to our comprehensive guide on Gearbox products, designed to meet the demands of various industrial sectors. Our Gearbox lineup offers reliable, efficient, and durable solutions tailored to your specific needs. Below, we detail the key parameters and features that make our Gearbox products stand out in the market.
| Parameter | Value Range | Units | Description |
|---|---|---|---|
| Gear Ratio | 5:1 to 100:1 | Ratio | Determines the speed reduction and torque multiplication |
| Input Speed | 500 to 3000 | RPM | Maximum allowable input rotational speed |
| Output Torque | 50 to 2000 | Nm | Torque capacity at the output shaft |
| Efficiency | 92% to 98% | Percentage | Mechanical efficiency under full load conditions |
| Weight | 5 to 150 | kg | Varies based on size and material |
| Operating Temperature | -20 to 120 | °C | Range for safe and efficient operation |
| Noise Level | 60 to 75 | dB | Measured at 1 meter distance under load |
| Service Life | 20,000 to 50,000 | hours | Expected lifespan with proper maintenance |
Our Gearbox products are widely used in industries such as manufacturing, automotive, aerospace, marine, and renewable energy. They are essential for applications requiring precise speed control, high torque, and reliable power transmission. Common uses include conveyor systems, robotic arms, wind turbines, and vehicle transmissions, ensuring optimal performance and efficiency.
What is the typical maintenance schedule for a Gearbox?
The maintenance schedule for a Gearbox depends on usage and operating conditions. Generally, it is recommended to perform an initial inspection after 500 hours of operation, followed by regular checks every 2,000 to 5,000 hours. This includes lubricant analysis, vibration testing, and visual inspections for wear or leaks. Proper maintenance can extend the Gearbox's service life significantly, often up to 50,000 hours or more.
How do I select the right Gearbox for my application?
Selecting the right Gearbox involves considering several factors: required torque, speed ratio, input power, environmental conditions, and space constraints. Start by calculating the necessary output torque and speed based on your load requirements. Then, review the Gearbox specifications, such as gear ratio and efficiency, to ensure compatibility. Consulting with our technical team can help tailor a solution to your specific needs, ensuring optimal performance and durability.
Can Gearbox products be customized for special requirements?
Yes, our Gearbox products can be customized to meet special requirements. We offer modifications in terms of size, material, gear ratio, mounting options, and sealing for harsh environments. Customization ensures that the Gearbox integrates seamlessly into your system, providing enhanced performance and reliability. Contact our engineering department to discuss your specific needs and receive a tailored solution.
Our Gearbox products are engineered with cutting-edge technology to deliver superior performance, reduced downtime, and lower total cost of ownership. With a focus on quality and customer satisfaction, we provide comprehensive support, including installation guidance and after-sales service. Trust our expertise to enhance your operations with reliable Gearbox solutions.
What materials are used in the construction of your Gearbox?
Our Gearbox units are constructed from high-quality materials such as hardened steel for gears, cast iron or aluminum for housings, and premium seals and bearings. These materials are chosen for their strength, durability, and resistance to wear and corrosion, ensuring long-term reliability even in demanding industrial environments. Specific material grades can be selected based on application needs, such as food-grade or high-temperature variants.
How does temperature affect Gearbox performance?
Temperature can significantly impact Gearbox performance. High temperatures may cause lubricant breakdown, leading to increased friction and wear, while low temperatures can make lubricants viscous, reducing efficiency. Our Gearbox products are designed to operate within a range of -20°C to 120°C, with options for specialized lubricants and cooling systems for extreme conditions. Regular monitoring and maintenance help mitigate temperature-related issues.
What is the warranty period for your Gearbox products?
We offer a standard warranty period of 2 years for our Gearbox products, covering defects in materials and workmanship under normal use. Extended warranty options are available for up to 5 years, depending on the application and maintenance agreements. This warranty ensures peace of mind and reflects our confidence in the quality and durability of our Gearbox solutions.
In summary, our Gearbox products represent the pinnacle of industrial power transmission technology. With detailed parameters, customizable options, and robust construction, they are ideal for a wide range of applications. By addressing common questions through our Gearbox FAQ, we aim to provide clarity and support for our customers. Choose our Gearbox for unmatched performance and reliability in your operations.
How do I troubleshoot common Gearbox issues like noise or overheating?
To troubleshoot common Gearbox issues, start by checking lubricant levels and quality, as inadequate lubrication often causes noise and overheating. Inspect for misalignment, wear on gears or bearings, and ensure proper ventilation. Regular maintenance, including vibration analysis and thermal imaging, can help identify problems early. If issues persist, consult our technical support for detailed diagnostics and solutions tailored to your Gearbox.
Are your Gearbox products compatible with international standards?
Yes, our Gearbox products comply with international standards such as ISO 9001 for quality management, AGMA for gear ratings, and CE marking for safety in European markets. This ensures that they meet rigorous performance and safety criteria, making them suitable for global applications. Certifications and test reports are available upon request to verify compliance.
What is the lead time for ordering a custom Gearbox?
The lead time for a custom Gearbox varies based on the complexity of the modifications and current production schedules. Typically, it ranges from 4 to 12 weeks. We strive to minimize lead times through efficient manufacturing processes and keep customers informed throughout the order process. For urgent requirements, expedited options may be available; contact our sales team for more details.
When it comes to motors, quality and reliability are paramount. Our range of motors is designed to meet the highest standards of efficiency and durability, catering to various applications from industrial machinery to automotive systems. In this comprehensive guide, we delve into the detailed product parameters, answer common FAQs, and provide insights to help you make an informed decision.
Our motors are engineered with precision, offering superior performance and energy efficiency. Below is a list of key features:
| Model | Power (HP) | Voltage (V) | Speed (RPM) | Efficiency (%) | Weight (kg) |
|---|---|---|---|---|---|
| M-100 | 0.5 | 120 | 500-1800 | 88 | 10 |
| M-200 | 5 | 240 | 1000-3600 | 92 | 25 |
| M-300 | 50 | 480 | 1500-3600 | 95 | 100 |
| M-400 | 100 | 480 | 1800-3600 | 96 | 200 |
| M-500 | 500 | 480 | 3600 | 97 | 500 |
What types of motors do you offer, and how do I choose the right one?
We provide a wide range of motors including AC induction motors, DC motors, and brushless motors. To choose the right motor, consider factors such as your application requirements (e.g., torque, speed), power supply, environment (e.g., indoor or outdoor use), and efficiency needs. Our team can assist in selecting the best model based on your specific criteria.
How often should I maintain my motor to ensure optimal performance?
Regular maintenance is crucial for longevity. For most motors, we recommend inspections every 6 months, including checking for wear and tear, lubricating bearings, and testing electrical connections. In harsh environments, more frequent checks may be necessary. Following the manufacturer's guidelines in the user manual will help prevent downtime and extend the motor's life.
Can your motors be customized for specific industrial applications?
Yes, we offer customization options to meet unique requirements. This includes modifications in size, power rating, mounting options, and special coatings for corrosive environments. Provide us with your specifications, and our engineering team will work with you to develop a tailored solution that ensures compatibility and efficiency.
Motors are the heart of many systems, and understanding their operation can enhance performance. Our products incorporate advanced technologies such as variable frequency drives (VFDs) for smooth speed control and smart sensors for real-time monitoring. These features contribute to reduced energy costs and improved reliability in applications like manufacturing, HVAC, and automotive industries.
With decades of expertise, we prioritize quality and customer satisfaction. Our motors undergo rigorous testing to ensure they meet international standards, and we provide comprehensive support包括 installation guidance and after-sales service. By choosing our products, you invest in durability, efficiency, and a partner dedicated to your success.
What is the expected lifespan of your motors under normal conditions?
Under normal operating conditions with proper maintenance, our motors can last 10-15 years or more. Factors such as load, environment, and usage patterns can affect lifespan. For instance, motors used in continuous heavy-duty applications may require earlier replacement, but our robust design minimizes wear.
Are your motors environmentally friendly and compliant with regulations?
Absolutely. Our motors are designed to comply with global environmental regulations, including RoHS and REACH directives. They feature high efficiency ratings that reduce carbon footprint and energy consumption, making them an eco-friendly choice for businesses aiming to meet sustainability goals.
How do I troubleshoot common issues like overheating or unusual noise?
Overheating can result from overloading, poor ventilation, or electrical faults. First, check the load and ensure adequate cooling. Unusual noise often indicates bearing wear or misalignment. Inspect and lubricate bearings regularly, and if issues persist, contact our support team for diagnostic assistance to avoid further damage.
In summary, our motors offer unmatched performance and reliability for various applications. By focusing on detailed parameters, maintenance, and customization, we ensure that you get the best value. Explore our product range today and experience the difference that quality engineering makes. For more information, refer to our detailed spec sheets or reach out to our experts.

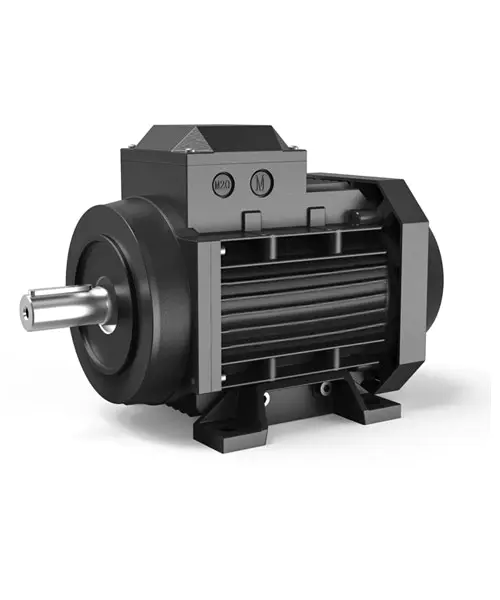

Electric motors are the heart of modern industrial and commercial operations, driving efficiency, reliability, and sustainability. With decades of expertise in manufacturing and innovation, our electric motors are engineered to meet the highest standards of performance and durability. Whether for industrial machinery, automotive applications, or renewable energy systems, our products deliver exceptional power and precision. This article provides a detailed overview of our electric motor offerings, including key specifications, FAQs, and technical insights to help you make an informed decision.
Our electric motors are designed with cutting-edge technology to ensure optimal performance across various applications. Below is a list of key features and a detailed table of product parameters.
| Parameter | Specification | Units |
|---|---|---|
| Power Rating | 0.5 - 500 | kW |
| Voltage | 110 - 480 | V |
| Speed | 500 - 3600 | RPM |
| Efficiency | IE3 - IE5 | Class |
| Insulation Class | F or H | N/A |
| Protection Rating | IP55 - IP68 | N/A |
| Weight | 5 - 1000 | kg |
Electric motors are versatile and can be used in numerous sectors. Common applications include manufacturing equipment, HVAC systems, electric vehicles, pumps, and fans. Their adaptability makes them essential for both traditional and emerging industries, such as robotics and renewable energy projects like wind turbines.
What are the main types of electric motors available?
The primary types include AC motors (such as induction and synchronous motors), DC motors (like brushed and brushless), and specialized variants such as stepper and servo motors. Each type offers distinct advantages in terms of control, efficiency, and application suitability.
How do I determine the right electric motor size for my application?
To select the appropriate motor size, consider factors like load requirements, operating speed, torque needs, and environmental conditions. Calculate the power demand based on your equipment's specifications and consult our product table for matching parameters. Oversizing or undersizing can lead to inefficiency or failure, so accurate assessment is crucial.
What maintenance is required for an electric motor?
Regular maintenance includes inspecting for wear and tear, lubricating bearings, checking electrical connections, and monitoring temperature and vibration levels. Preventive schedules vary by usage but typically involve quarterly or annual checks to ensure longevity and prevent unexpected downtime.
Modern electric motors incorporate innovations like smart sensors for predictive maintenance, variable frequency drives for speed control, and materials that enhance thermal management. These advancements contribute to longer lifespans and reduced energy consumption, aligning with global sustainability goals.
Can electric motors be used in hazardous environments?
Yes, certain electric motors are designed with explosion-proof or dust-ignition-proof certifications (e.g., ATEX or UL listings) for use in hazardous locations. These motors feature enhanced encapsulation and cooling systems to prevent sparks or overheating, ensuring safety in industries like oil and gas or chemical processing.
What is the typical lifespan of an electric motor?
With proper maintenance, electric motors can last 15 to 20 years or more, depending on the operating conditions. Factors such as load intensity, environmental exposure, and maintenance frequency significantly influence longevity. High-quality motors from reputable manufacturers often exceed these averages.
How does motor efficiency impact energy costs?
Higher efficiency motors (e.g., IE4 or IE5 class) consume less electricity for the same output, leading to substantial energy savings over time. For instance, upgrading from an IE2 to an IE4 motor can reduce energy costs by up to 5-10%, making it a cost-effective investment in the long run.
Our electric motors adhere to international standards such as IEC, NEMA, and ISO, ensuring compatibility and safety. Certifications like CE and RoHS demonstrate compliance with environmental and regulatory requirements, providing confidence in product quality and reliability.
What are the benefits of brushless DC motors over brushed types?
Brushless DC motors offer higher efficiency, longer lifespan, and reduced maintenance due to the absence of brushes that wear out. They provide better speed control and are ideal for applications requiring precision, such as in medical devices or aerospace systems.
How do I troubleshoot common electric motor issues?
Common issues include overheating, unusual noises, or failure to start. Overheating may stem from overloading or ventilation problems; check load levels and cooling systems. Noises often indicate bearing wear or misalignment. For startup failures, inspect power supply, connections, and control circuits. Always refer to the manufacturer's manual for specific guidance.
Are there environmentally friendly options for electric motors?
Yes, many electric motors are now designed with eco-friendly materials and processes, including high-efficiency models that reduce carbon footprint. Additionally, motors for renewable energy applications, such as those used in solar or wind power, support sustainability initiatives by minimizing energy waste.
Investing in the right electric motor is critical for operational efficiency and cost savings. Our comprehensive range of products, backed by detailed specifications and expert support, ensures you find the perfect solution for your needs. For more information or to request a quote, explore our product catalog or contact our team today.
View More

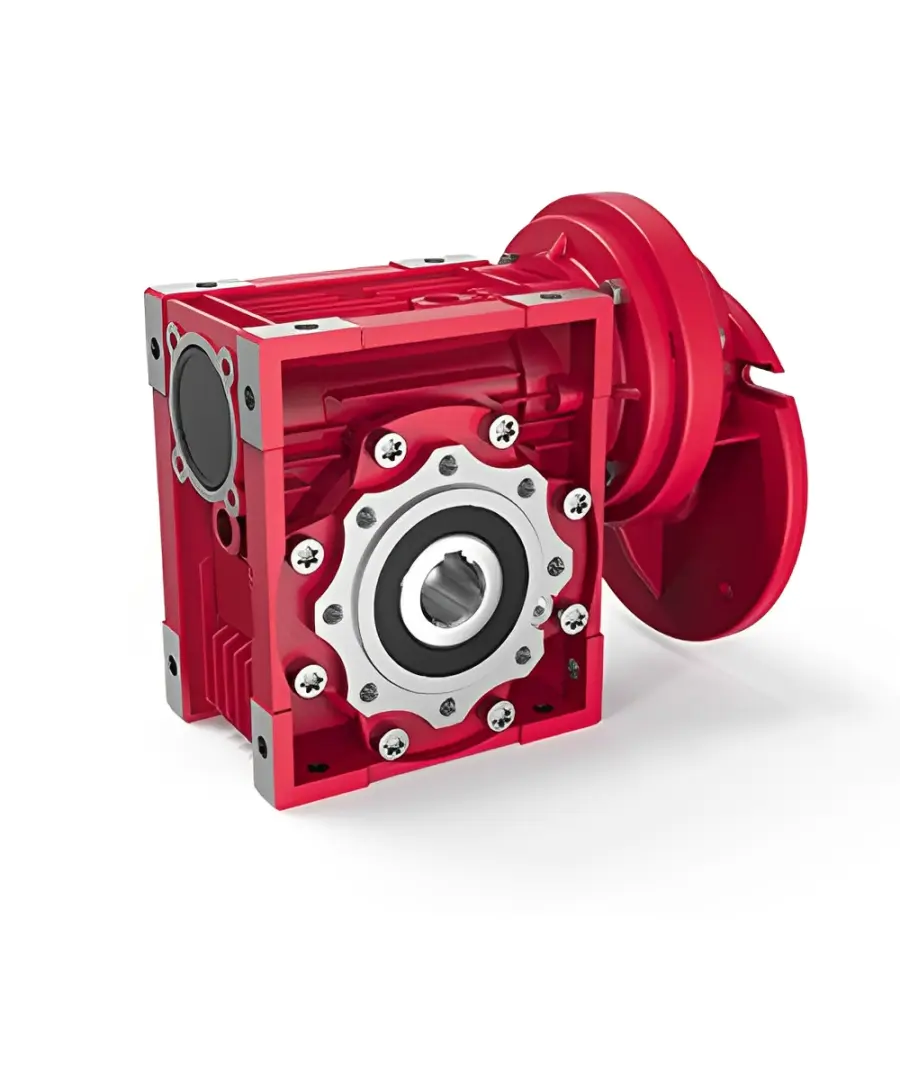

A speed reducer, also known as a gear reducer, is a mechanical device designed to reduce the rotational speed of an input shaft while increasing torque at the output shaft. It plays a crucial role in various industrial applications, ensuring efficient power transmission and machinery operation. Speed reducers are essential in industries such as manufacturing, automotive, robotics, and conveyor systems, where precise speed control and high torque are required for optimal performance and longevity of equipment.
Our speed reducers are engineered with precision, using high-quality materials and advanced manufacturing techniques to deliver reliability, durability, and efficiency. They are designed to handle heavy loads, operate in harsh environments, and provide consistent performance with minimal maintenance. Whether you need a standard model or a custom solution, our products are tailored to meet your specific requirements, ensuring seamless integration into your systems.
Understanding the technical specifications of our speed reducers is vital for selecting the right model for your application. Below, we provide detailed parameters in both list and table formats to help you make an informed decision.
| Model | Reduction Ratio | Input Power (kW) | Output Torque (Nm) | Efficiency (%) | Mounting Type | Weight (kg) |
|---|---|---|---|---|---|---|
| SR-100 | 10:1 | 5.5 | 350 | 92 | Foot-mounted | 25 |
| SR-200 | 20:1 | 7.5 | 500 | 94 | Flange-mounted | 35 |
| SR-300 | 30:1 | 11 | 750 | 93 | Shaft-mounted | 45 |
| SR-400 | 50:1 | 15 | 1000 | 95 | Foot-mounted | 60 |
| SR-500 | 100:1 | 22 | 1500 | 91 | Flange-mounted | 80 |
Note: All parameters are based on standard operating conditions. Customizations are available upon request to suit specific applications.
Speed reducers are versatile components used across multiple industries. In conveyor systems, they ensure smooth and controlled movement of materials. In robotics, they provide precise motion control for arms and joints. Automotive applications include power transmission in vehicles and assembly lines. Manufacturing machinery relies on speed reducers for tasks such as cutting, drilling, and pressing, where consistent speed and high torque are critical. Additionally, they are used in renewable energy systems, like wind turbines, to optimize power generation efficiency.
Question: What is the typical lifespan of a speed reducer?
Answer: The lifespan of a speed reducer depends on factors such as load conditions, maintenance, and operating environment. Under normal conditions with proper lubrication and regular maintenance, our speed reducers can last between 10,000 to 20,000 hours of operation. High-quality materials and robust design contribute to this longevity, ensuring reliable performance over time. It's recommended to follow the manufacturer's maintenance schedule to maximize lifespan.
Question: How do I choose the right speed reducer for my application?
Answer: Selecting the appropriate speed reducer involves considering several factors: First, determine the required reduction ratio based on your input and output speed needs. Next, calculate the torque requirements to handle the load. Consider the input power and ensure it matches your motor's output. Mounting options should align with your system's design, and environmental factors like temperature and exposure to elements must be accounted for. Consulting with our technical team can help you choose a model that meets your specific application demands, ensuring optimal performance and efficiency.
Question: What maintenance is required for a speed reducer?
Answer: Regular maintenance is essential for the optimal performance of a speed reducer. Key tasks include checking and maintaining proper lubrication levels, as inadequate lubrication can lead to wear and failure. Inspect for leaks, unusual noises, or vibrations, which may indicate issues. Lubricant should be replaced periodically according to the operating hours or manufacturer's recommendations, typically every 2,000 to 5,000 hours. Additionally, ensure that mounting bolts are tight and the unit is free from debris. For harsh environments, more frequent checks may be necessary to prevent downtime and extend service life.
Our speed reducers offer numerous advantages, including high efficiency, which reduces energy consumption and operational costs. They are built with durable materials, providing resistance to wear and tear, even in demanding conditions. The compact design allows for easy integration into existing systems without requiring significant space modifications. With low noise levels, they contribute to a quieter working environment. Customization options ensure that you get a product tailored to your exact needs, enhancing overall system performance and reliability.
With years of expertise in the industry, we pride ourselves on delivering top-quality speed reducers that meet international standards. Our products undergo rigorous testing to ensure they perform reliably under various conditions. We offer comprehensive support, from selection to installation and maintenance, backed by a responsive customer service team. Competitive pricing and timely delivery make us a trusted partner for businesses worldwide. Choose us for innovative solutions that drive your operations forward.
Question: Can speed reducers be used in high-temperature environments?
Answer: Yes, our speed reducers are designed to operate in high-temperature environments, with models capable of handling temperatures up to 120°C. However, it's important to select the appropriate lubrication and materials for such conditions. Synthetic lubricants may be recommended for better performance at elevated temperatures. Always check the product specifications and consult with our team to ensure the reducer is suitable for your specific temperature range, as exceeding limits can affect efficiency and lifespan.
Question: What is the difference between a speed reducer and a gearbox?
Answer: The terms "speed reducer" and "gearbox" are often used interchangeably, but there is a subtle difference. A speed reducer specifically focuses on reducing speed and increasing torque, typically using gears in a compact housing. A gearbox is a broader term that can refer to any system of gears used for speed reduction, increase, or direction change. In practice, many gearboxes function as speed reducers, but not all gearboxes are designed solely for reduction. Our products are optimized for reduction applications, ensuring precise control and high torque output.
Question: How do I troubleshoot common issues with a speed reducer?
Answer: Common issues with speed reducers include overheating, noise, and vibration. For overheating, check lubrication levels and ensure proper ventilation; inadequate lubrication or overloading can cause this. Unusual noise may indicate worn gears or bearings, requiring inspection and possible replacement. Vibration often results from misalignment or imbalanced loads; verify mounting and alignment. Regularly monitor performance and address issues promptly to prevent major failures. Refer to the user manual or contact our support team for detailed troubleshooting guides tailored to your model.
In summary, our speed reducers are engineered for excellence, offering reliable performance, durability, and efficiency across various applications. By understanding the product parameters and following best practices for selection and maintenance, you can maximize the benefits of these essential components. We invite you to explore our range of products and contact us for personalized assistance to find the perfect solution for your needs.
Question: Are custom speed reducers available for unique applications?
Answer: Absolutely, we offer custom speed reducers tailored to unique applications. Whether you need specific reduction ratios, special mounting configurations, or materials suited for extreme environments, our engineering team can design a solution that meets your exact requirements. Custom options may include modified gear designs, enhanced sealing for waterproofing, or integration with other components. Provide us with your application details, and we'll develop a prototype or final product that ensures optimal performance and compatibility with your system.
Question: What certifications do your speed reducers have?
Answer: Our speed reducers are certified to meet international standards such as ISO 9001 for quality management and CE marking for compliance with European health, safety, and environmental requirements. Additionally, specific models may have certifications like UL listing or ATEX for hazardous environments. These certifications ensure that our products undergo strict testing and adhere to high standards of performance and safety. We continuously update our processes to maintain compliance and provide customers with reliable, certified components for their applications.
Question: How does backlash affect speed reducer performance?
Answer: Backlash refers to the slight movement or play between gears in a speed reducer when changing direction. Excessive backlash can lead to reduced precision, increased wear, and noise in applications requiring accurate positioning, such as robotics or CNC machines. Our speed reducers are designed with minimal backlash, often below 5 arcminutes for high-precision models, to ensure smooth operation and longevity. Regular maintenance and proper installation help maintain low backlash levels. When selecting a reducer, consider the application's tolerance for backlash to choose the most suitable model.
View More

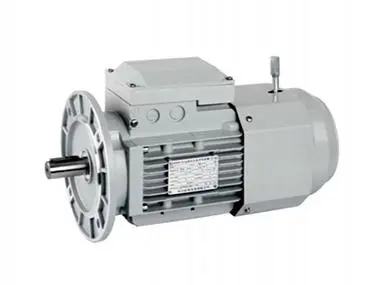

The YEJ series electromagnetic brake 3 phase motor, asynchronous motor has large braking torque, fast braking response speed, high reliability, strong universality, so that it is suitable for lifter, winding engine, gate operator and some other equipment sets.

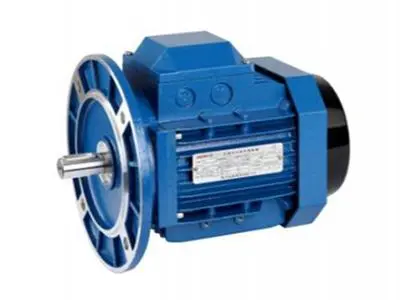

The YVF2 series variable speed AC motor produced by ZHOUYI has good universality. The installation dimension meets the standard of IEC, so that it can be the replacement of the general standard electric motor. It can be widely used for food packaging machinery, chemical equipment, wood working machine, crane, construction machinery, compressor, transport conveyor, dredger, engine and transverter, washing machine, metal rolling machine, draught fan etc.

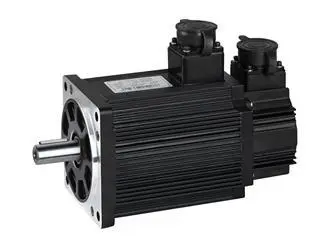

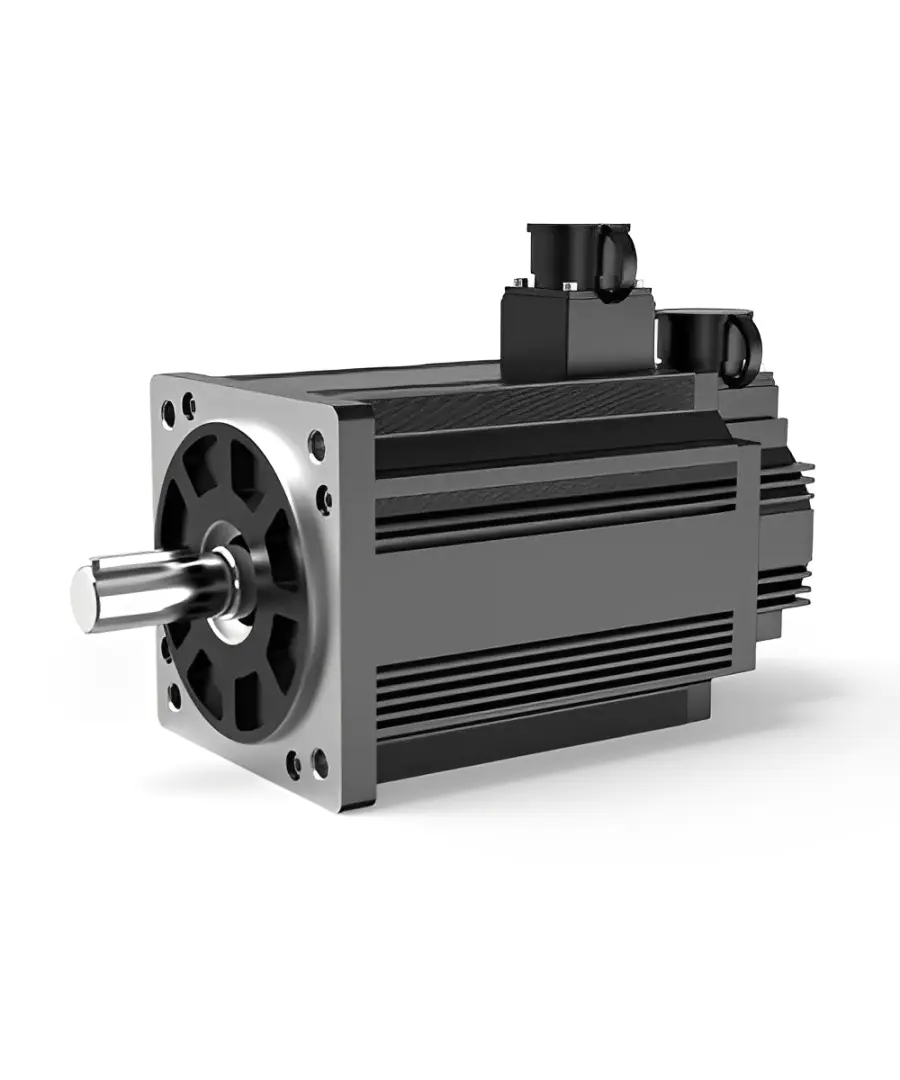

The 180 series AC servo motor can operate stably in both high speed or low speed conditions. It is suitable for medical equipment, high precision equipment sets of printing, chemical, wood working industries etc.

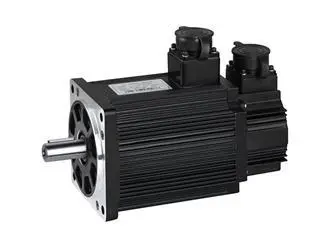

The efficiency of 150 series AC servo motor is 35% higher than the common electric motor. It is suitable for machine tool, high precision equipment sets of printing, food, chemical industries etc.
